MB1445-44F5PA
share:
Inquire Now
Electrical Specification
Item
Spec
Unit
Center Frequency
1445
MHz
Band Width
44
MHz
Insertion Loss(dB)
3
dB
Ripple in BW
1
dB
VSWR in BW
1.5
Attenuation
52dBc@50~1330 / 45dBc@1570~3000
dB
Interface Method
SMT
Size（W*L*H)
14.0*8.0*5.5
mm
Form
Band Pass

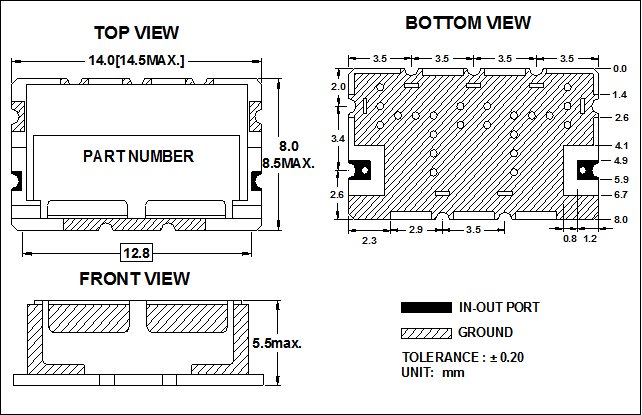

Mechanical Specification
