AB1090-35K4PA
share:
Inquire Now
Electrical Specification
Item
Spec
Unit
Center Frequency
1090
MHz
Band Width
35
MHz
Insertion Loss(dB)
3
dB
Ripple in BW
1
dB
VSWR in BW
1.5
Attenuation
25dB @1130&1050
dB
Interface Method
SMT
Size（W*L*H)
27.5*14.0*7.8
mm
Form
Band Pass

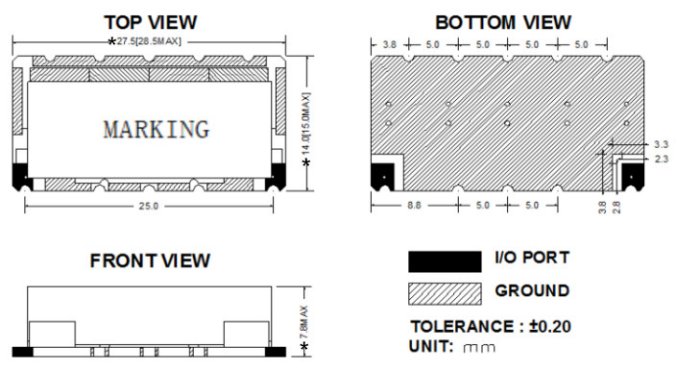

Mechanical Specification

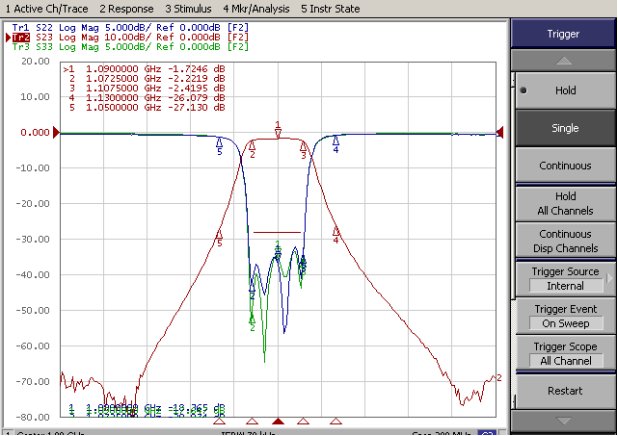

Plot Data
